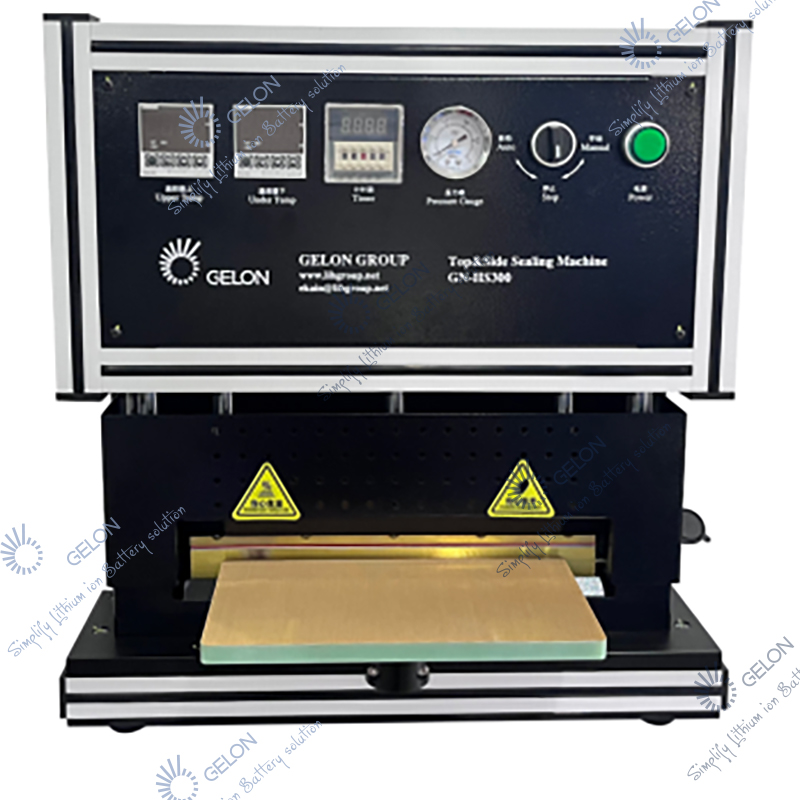

Top and Side Sealing Machine（GN-HS300）

5.0

Read 108 reviews

The resistance heating tube transfers heat to the sealing head (brass), utilizing the thermal conduction effect on the packaging material of the lithium battery (aluminum lamination film). Under a certain pressure, it heats, softens, and approaches a molten state to complete the pressing and merging. It can also achieve top and side sealing without changing the sealing head (the upper sealing head is hard, and the lower sealing head is soft).

17 people are viewing this right now

Product Detail

Overview

1. The resistance heating tube transfers heat to the sealing head (brass), utilizing the thermal conduction effect on the packaging material of the lithium battery (aluminum lamination film). Under a certain pressure, it heats, softens, and approaches a molten state to complete the pressing and merging. It can also achieve top and side sealing without changing the sealing head (the upper sealing head is hard, and the lower sealing head is soft).

2. The equipment production workflow involves confirming the opening of the air switch, connecting the power and air sources, starting the power supply, and setting the upper and lower temperature controllers to the specified values. Once the temperature reaches the specified value, switch the knob to automatic, place the battery cell in the sealing position, step on the foot switch, and the equipment will operate.

Features

1. Desktop design, equipped with operating platform and sheet metal protective cover, safe and convenient operation.

2. Sealing head is easy to disassemble, the parallelism of the upper and lower die head is good, and the heat sealing effect is stable.

3. The temperature of the upper and lower die head is independently controlled.

4. The heat sealing time is adjustable.

5. Single-station sealing, automatic/manual models can be switched, and the sealing effect is excellent.

Name	Parameters	Remarks
Soft Seal Setting Temperature	Recommended 200℃-230℃
Hard Seal Setting Temperature	Recommended 170℃-190℃
Tab and Tab Tape Thickness Range	Tab≤0.15mm， Tab Tape Thickness≤0.1mm	Exceeding the specified range, customized according to customer requirements
Sealing Time	Recommended 3~6s	Adjustable from 0-99s
Seal Thickness	≤0.5mm
Sealing Head Length	300mm
Sealable Battery Size	Max L280mmxW280mmxH10mm	Including air bag and tabs
Sealing Edge Width	5mm (Standard)	Customized
Gas source	0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air	If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.
Power Supply	AC220V/50Hz, AC110V/60Hz	Customized
Power	1800W

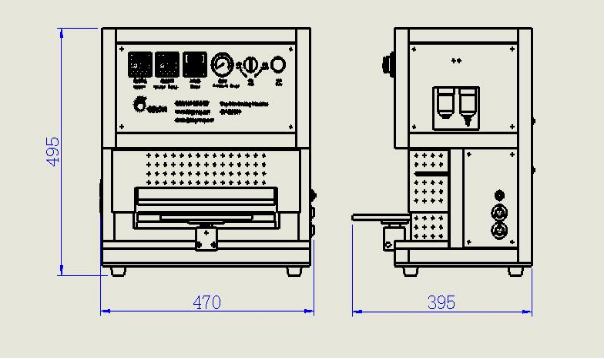

Equipment Dimensions	≈L500W330H495mm
Size of Wooden Box after Equipment Packaging	≈L620W450H700mm
Net Weight of Equipment	Approx. 48kg
Gross Weight of Equipment	Approx. 63.5kg
Usage Site		Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period	1-year warranty, lifetime maintenance
