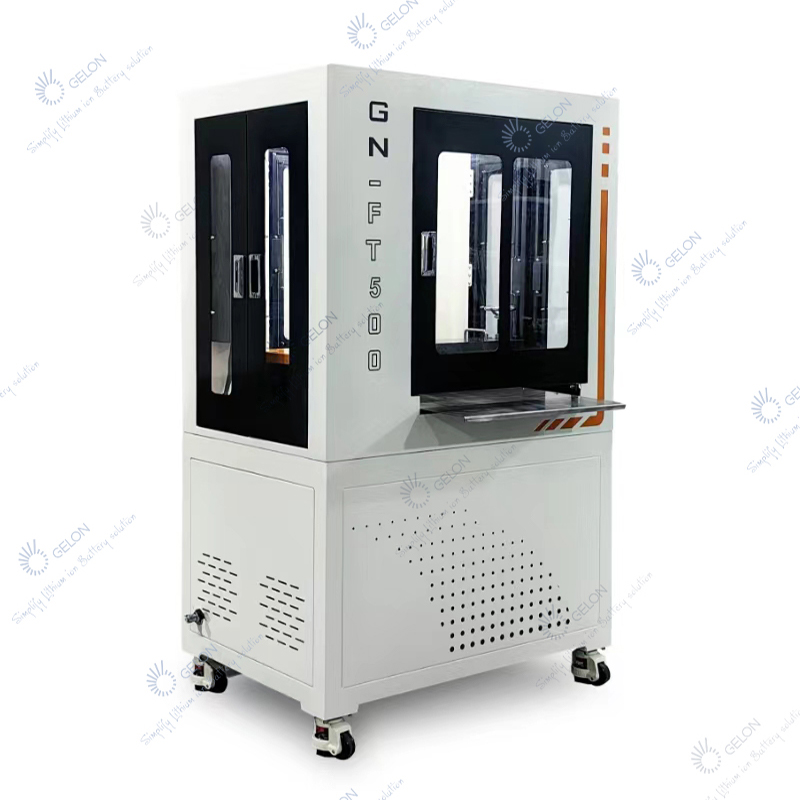

Semi-automatic slitting machine

5.0

Read 95 reviews

Equipment Overview1. This equipment is mainly suitable for cutting lithium-ion battery pole pieces that have been cut into pieces. The main structure consists of upper and lower frames, cutter mechanism, cutter drive mechanism, and feeding and discharging devices.2. This machine uses a circular cutter roller slitting method. The slitting principle is to drive the upper and lower slitting knife seats to slit the pole pieces through a motor, with manual feeding and automatic discharging. Pre-cut the lithium-ion battery pole pieces into the required length, place the cut pole pieces against the feed guide edge, and then gently push them into the cutting system with your hand. During operation, your hand must always hold the pole piece steady to prevent the guide edge from causing a gap and cutting the pole piece.Equipment Features1. Suitable for pole products, easy maintenance of the knife seat.2. High precision in cutting poles.3. The poles have high-precision transition rollers.4. Positioning blocks are equipped on both sides of the feeding direction, and the positioning blocks can be adjusted perpendicular to the feeding direction.5. The length of the trays of different specifications of the feeding port and the discharging port can be adjusted, and the adjustable range is 400-800mm.

17 people are viewing this right now

Product Detail

Equipment Overview

1. This equipment is mainly suitable for cutting lithium-ion battery pole pieces that have been cut into pieces. The main structure consists of upper and lower frames, cutter mechanism, cutter drive mechanism, and feeding and discharging devices.

2. This machine uses a circular cutter roller slitting method. The slitting principle is to drive the upper and lower slitting knife seats to slit the pole pieces through a motor, with manual feeding and automatic discharging. Pre-cut the lithium-ion battery pole pieces into the required length, place the cut pole pieces against the feed guide edge, and then gently push them into the cutting system with your hand. During operation, your hand must always hold the pole piece steady to prevent the guide edge from causing a gap and cutting the pole piece.

Equipment Features

1. Suitable for pole products, easy maintenance of the knife seat.

2. High precision in cutting poles.

3. The poles have high-precision transition rollers.

4. Positioning blocks are equipped on both sides of the feeding direction, and the positioning blocks can be adjusted perpendicular to the feeding direction.

5. The length of the trays of different specifications of the feeding port and the discharging port can be adjusted, and the adjustable range is 400-800mm.

name	parameter	Remark
Glitch Control	Vertical ≤15μm, horizontal ≤30μm
Slitting materials	Copper foil, aluminum foil, positive and negative electrodes
Cutting method	Circular cutter roller slitting
Material thickness	15—350um
Maximum width of incoming material	500mm
Minimum slitting width	≥3mm	Can be customized according to customer needs
Maximum slitting length	≥1000mm
Slitting width accuracy	±0.05mm	Ensure that the film is placed flat and vertical and the operation is level
Cutter life	5000m/hand
Cutting thickness	100~350μm
Guide plate straightness	0.3mm
Slitting speed	Motor speed regulator adjustable
power supply	AC220V/50Hz.110V/60Hz	Can be customized according to customer needs
power	1100W
Device size	About L880W880H1700mm	Including the size of the splice plate
Dimensions after wooden box packaging	About 110011001800mm
Equipment Net Weight	About 300kg
Equipment gross weight	About 370kg
Warranty period	1 year warranty, lifetime maintenance
